ACETECH AC5000 Chronograph
- User-friendly interface with 128*64 pixel LCD
- Easier to control: Equipped with 4-way push button
- More durable: IR sensor self-calibration as well as IR sensor calibration in production
- Friendly UI: Enables user directly select and change ammo parameters in main screen
- Not working with Nerf
Product Description
Support Micro-USB (5V/0.5A) power input (no battery charge function) or Use AA Alkaline battery*2
- Measures Muzzle Velocity from 30 m/s ~ 400 m/s (90 ft/s ~ 1200 ft/s)
- Ammo parameter setting supports 5 memory slots
- Ammo parameter setting from Weight: 0.01g ~ 9.99g Caliber 4.5mm ~ 18mm
- 25 memory slots for velocity and ROF (Rate of fire)
- Idling and low battery auto power off function.
- FCC, CE, RoHS compliant
- Tripod Ready mounting hole (Screw for standard camera / camcorder tripods )
- Support Micro-USB(5V/0.5A) power input(no battery charge function)
- ROF range: 100~5000RPM
- Extra large caliber (diameter 24mm)
- Weight: 200g without battery
- Size : L x W x H = 117 x 97 x 59 (mm)
Note 1:For Gas/CO2 blow back airsoft & Gel blaster, there will be water vapor and mist eruption when fired, and willinterfering with IR detection readings.
It is recommended to keep a certain distance from the chronograph when using Gas/CO2 blow back airsoft &Gel blaster to avoid disturbed readings.
MENU
|
|
|
|---|---|---|
Screen 1 mainly shows the round of fire and velocity. This screen is designed to help users read data easily. No other data showed here. | Despite round of fire and velocity, Screen 2 present more detail data including Energy (Joule) and Energy per unit area (J/cm²). Besides, hotkey of ammo parameter is provided that user can change the ammo setting conveniently. | Screen 3 displays 25 memory slots recording each rate of fire and velocity (No missing fire data). Users can check the record of velocity and ROF anytime. |
In the setting screen, users can set the BBs information (weight and caliber) and unit. Machine setting also can be found here.
|
|
|
|---|---|---|
Caution! Please use Alkaline Battery. The use of carbon zinc battery may cause the inaccuracy. | The contrast of LCD display can be adjusted. Back light can be turned on/off according to personal preference. 4-way push button can help users to operate easily. | Acetech AC5000 supports Micro-USB (5V/0.5A) power input (no battery charge function). Tripod mount can be installed with UNC 1/4" - 20 screw. |
 |
 |
 | |
|---|---|---|---|

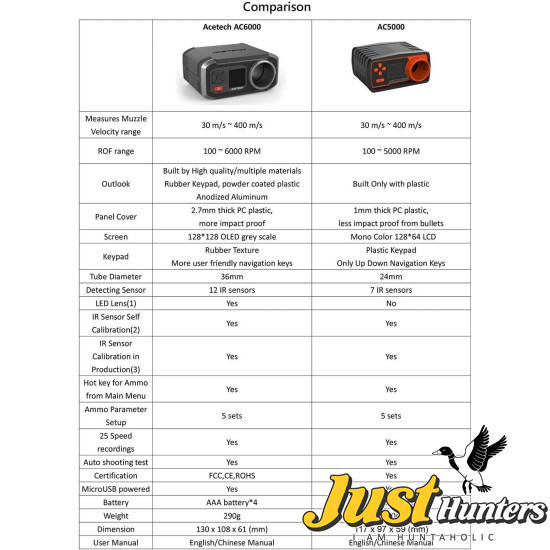

| Acetech AC6000 | Acetech AC5000 | Lighter BT | |
| USD | 80 | 55 | 99 |
| Measure Muzzle Velocity | 30/ms ~ 400/ms | 30/ms ~ 400/ms | 30/ms ~ 400/ms |
| Panel Cover | 2.7mm Thick PC Plastic | 1mm Thick PC Plastic | On smart device |
| Screen | 128*128 OLED | 128*64 LCD | On smart device |
| Keypad | Rubber Texture | Plastic Keypad | On smart device |
| Tube Diameter | 36mm | 24mm | 12mm |
| Detecting Sensor | 12 IR Sensors | 7 IR Sensors | |
| LED Lens | ✓ | X | X |
| IR Sensor Self Calibration | ✓ | ✓ | ✓ |
| Battery | Li-Battery | AA Alkaline Battery*2 | Li-Battery |
